• Bevel-rim appearance design, ultra slim body housing
• Stable quality and high luminous efficiency, exquisite, durable and good heat dissipation
• Alu frame +PMMA LGP
• 5 years warranty, 50000hrs lifespan
• Optional: On/Off, 0-10V/Dali dim.
• Housing: Aviation 6063 aluminum
• Finishing Color: Opal white / grey (Depending on quantity)
• Diffuser: Polycarbonate / Polystyrene
• Installation Way: Surface Mount by Screws / Brackets
• Warranty: 5 Years • Ingress Protection: IP20 / IP54 /IP65
• Flicker: Free

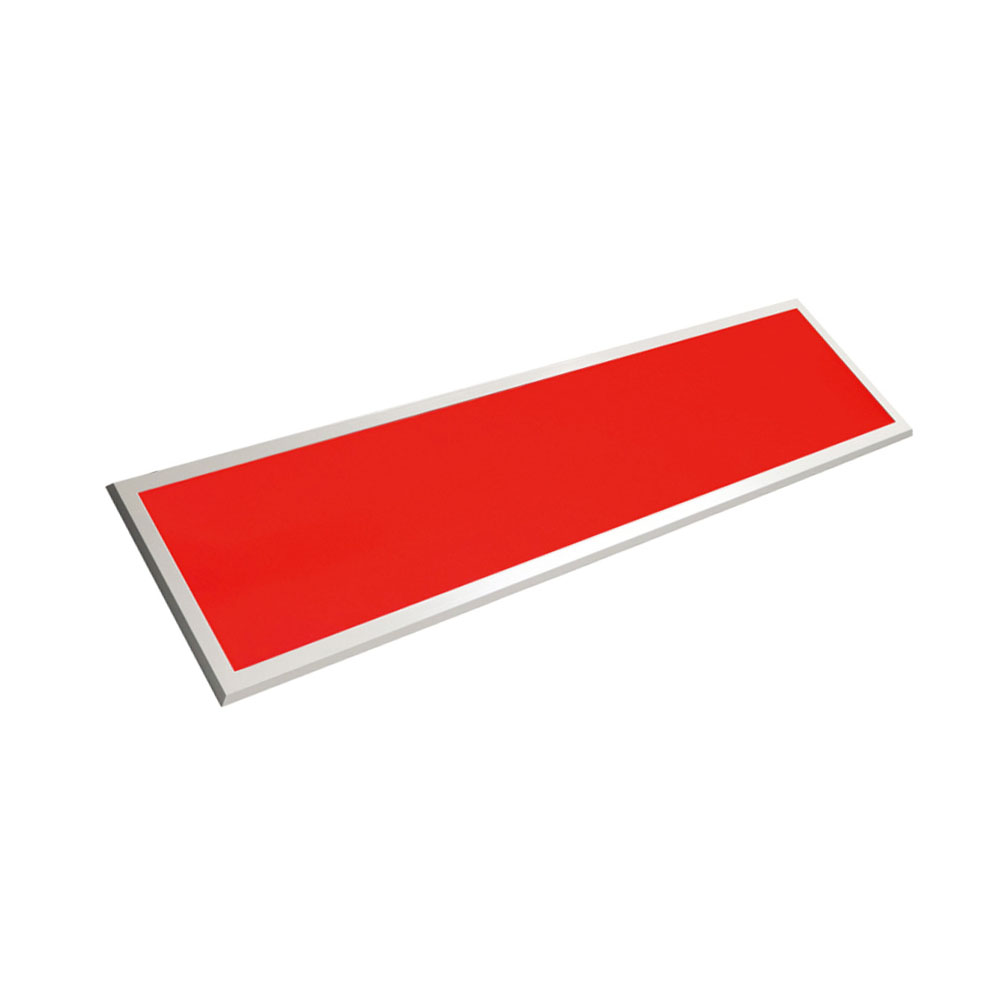

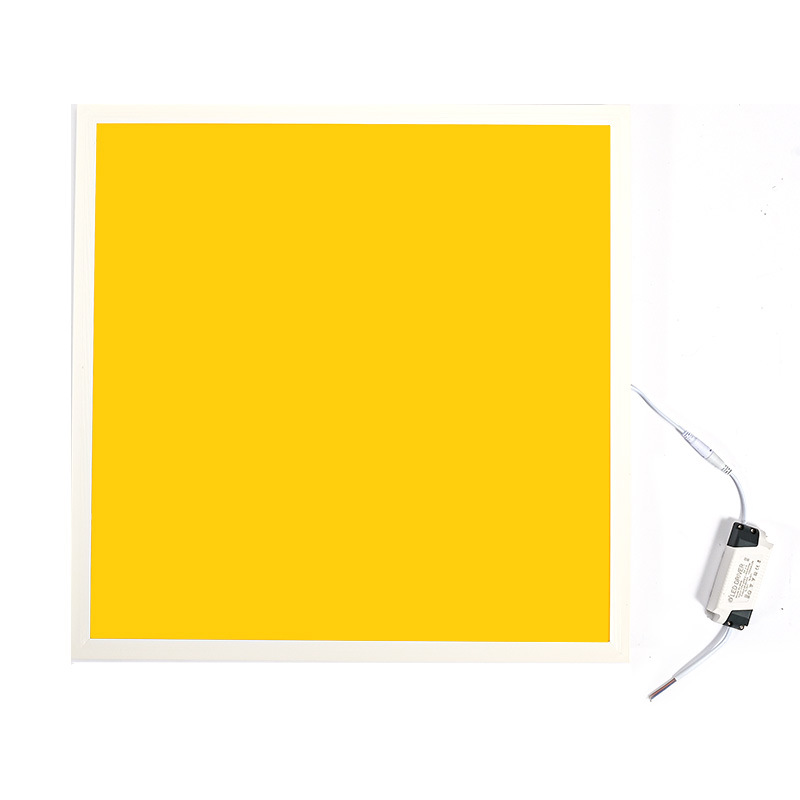

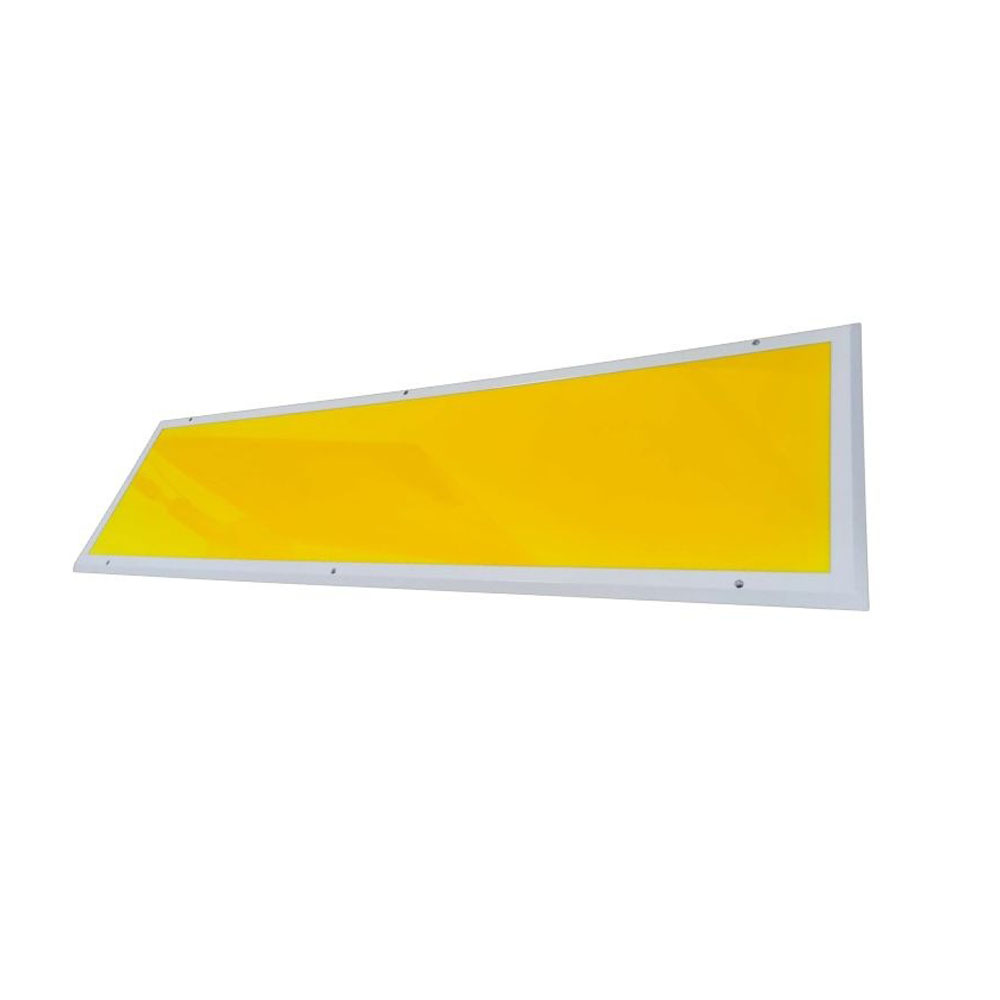

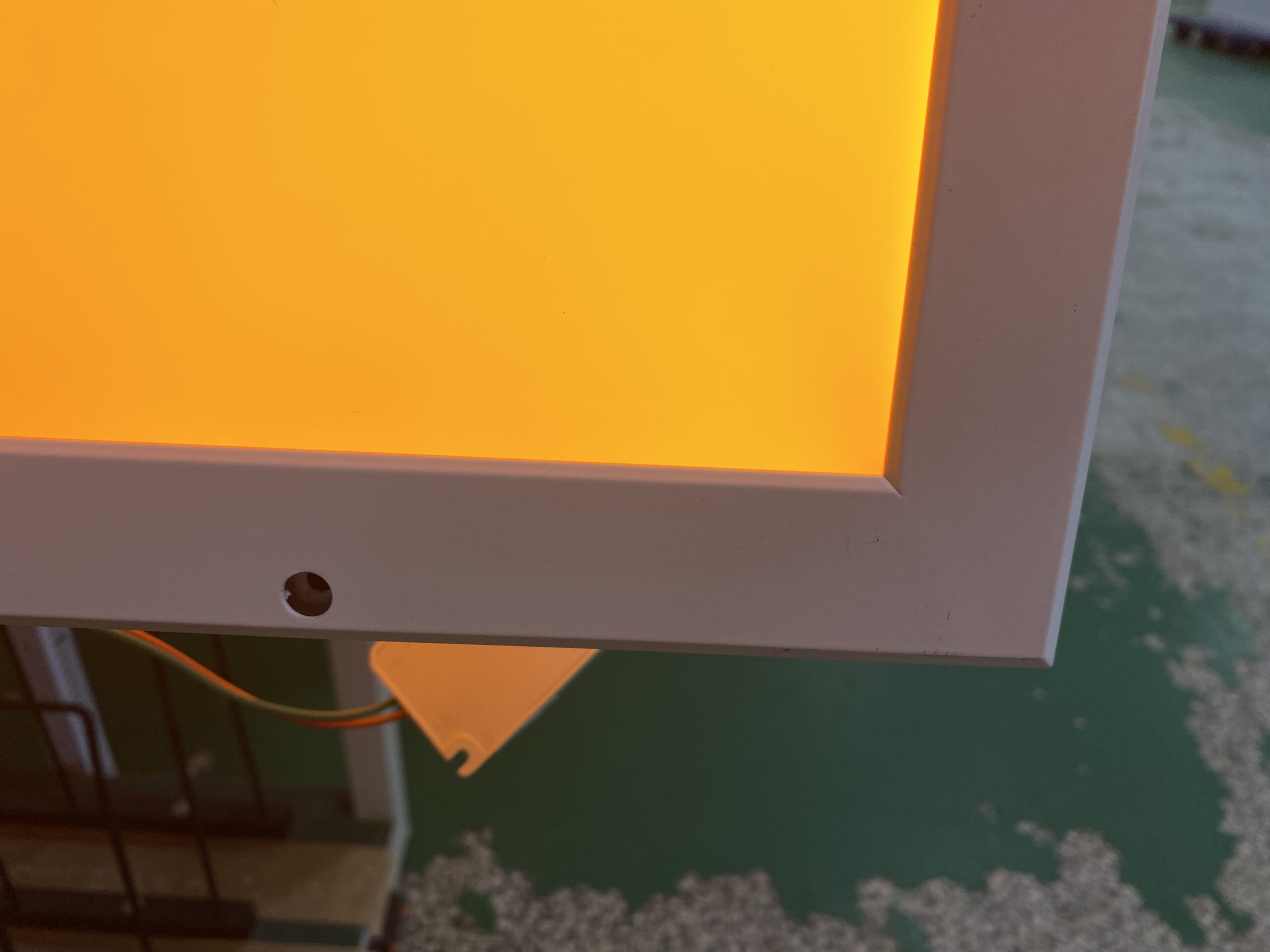

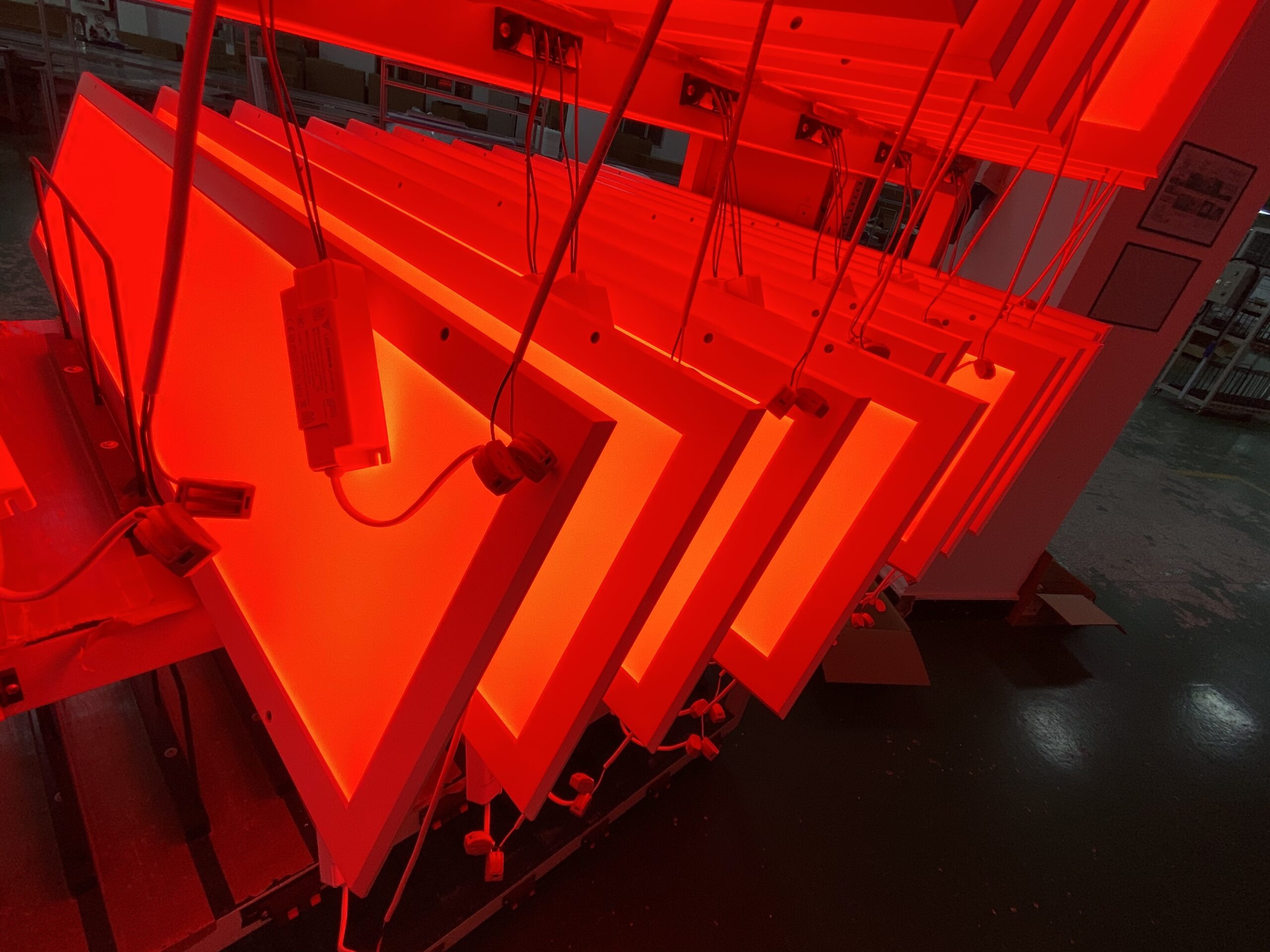

• Beam Color: Yellow / Red / Blue
• Wavelength: Yellow 585-595nm / Red 620nm / Blue 442-445nm
• Option: Surface mounting by brackets/Screws
LED Type:
SMD4014 / 2835
Beam Color: Yellow / Red / Blue
Wavelength: Yellow 585-595nm / Red 620nm / Blue 442-445nm
Flicker Free
Optional: On/Off, 0-10V/Dali dim.
Working lifespan:50,000hours
| Model | Power(W) | Dimen.(L x W x H / mm) | LED Sodium |
| CR-PC | 12 | 300 x 300 x 10 | Yellow / Red / Blue |
| CR-PC | 24 | 300 x 600 x 10 | Yellow / Red / Blue |
| CR-PC | 40 | 600 x 600 x 10 / 1200 x 300 x 10 | Yellow / Red / Blue |
| CR-PC | 48 | 600 x 600 x 10 /1200 x 300 x 10 | Yellow / Red / Blu |
| CR-PC | 60 | 1200 x 600 x 10 | Yellow / Red / Blue |
Packages and Shipment
Sample Packaging and Transportation：
Generally use thickened cardboard boxes or environmentally friendly fumigated wooden crates, plywood.
Use international shipping, such as DHL, FedEx, or the customer's designated shipping method.
Bulk Packaging and Transportation:
First use thickened cardboard boxes, then use plywood or fumigated pallets/fully enclosed fumigated wooden crates.
Shipping by sea or air.
