• Remarkable efficient performance in 80lm/w at least, reducing electricity costs and energy efficiency.
• 6063 / 6061 aviation aluminum alloy frame, no rust and anti corrosion.
• High-transmission SMD lens and prismatic diffuser offering a stable and homogeneous light distribution in 85° beam angle.

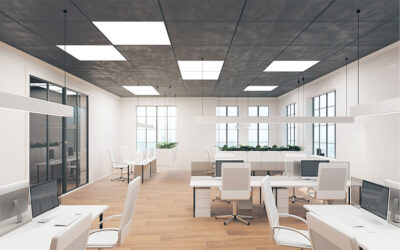

• Applied to Office, Conference, Classroom, Library etc.
• Frame：6063 / 6061 aviation aluminum alloy
• Finishing Color: White, Black, Silver and other colors on request(Depending on quantity)

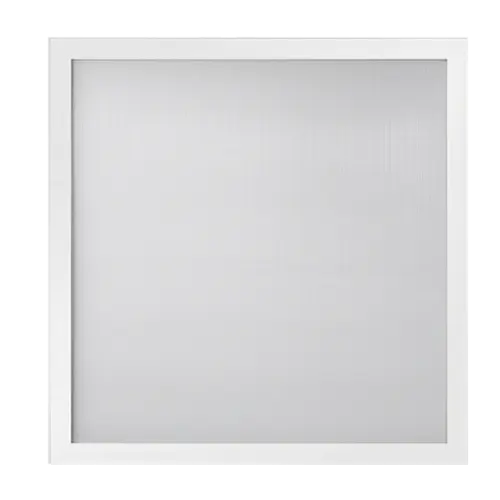

• Diffuser: Anti-yellow Prismatic Polystyrene (PS) or Polycarbonate (PC) offering 85° beam light
• Installation Way: Recessed, Surface Mounted, Suspended
• Warranty: 5 Years
• Ingress Protection: IP20
• Flicker: Free
• Option: Mounting Frame, Suspension Wire, Clips, Rope
LED Type:
Color Temperature(CCT): 2700K/3000K/4000K/5000K/6500K
RA>80, SDCM6/5/3
Beam Angle: 85° (Backlit/Edgelit for option)
Driver：
AC220-240V / 100-277V, 50/60Hz
PF>0.90
Flicker Free
ON/OFF/ 0-10V / DALI dim.

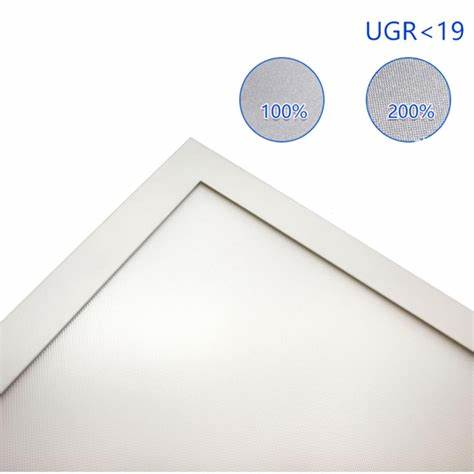

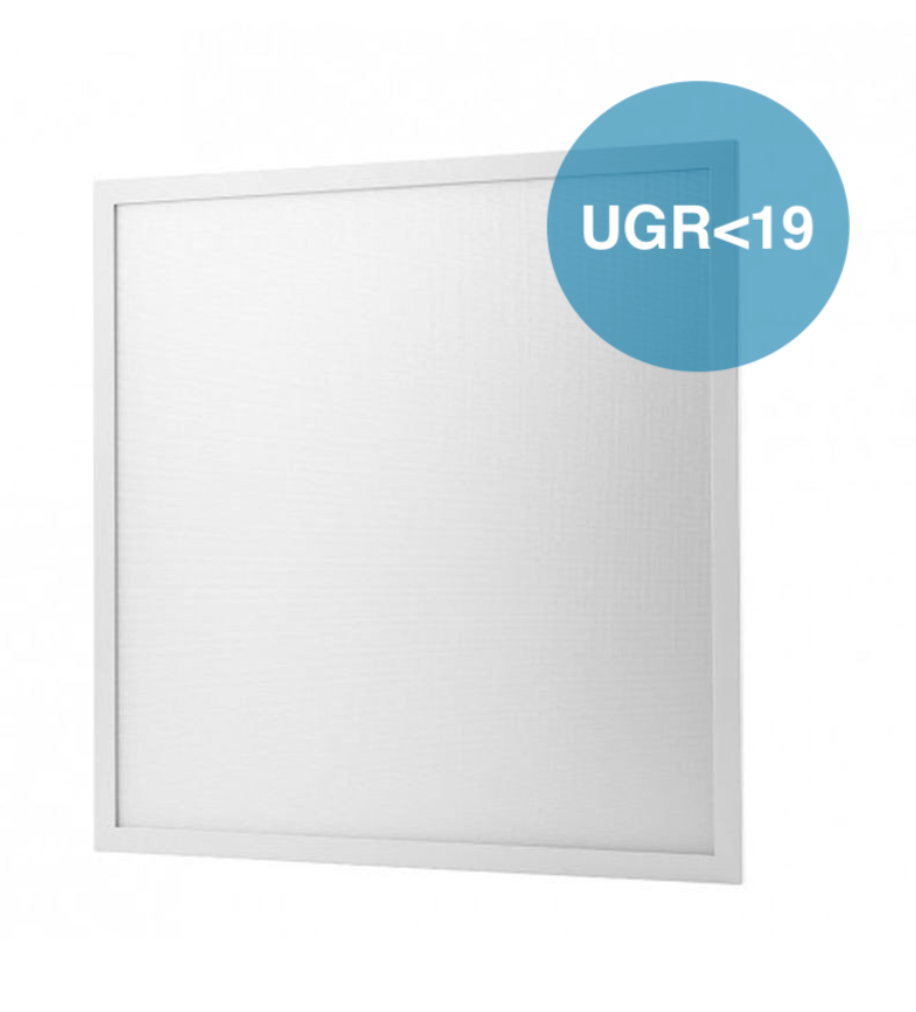

UGR<19
Working lifespan:50,000hours

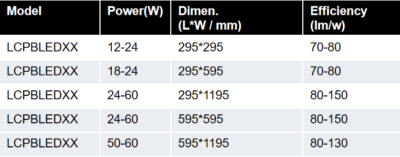

| Model | Watt.(W) | Dimen.(mm) | Efficiency(lm/w) |
| LC-PBLEDXX | 12-24 | 295*295 | 70-80 |
| LC-PBLEDXX | 18-24 | 295*595 | 70-80 |
| LC-PBLEDXX | 24-60 | 295*1195 | 80-150 |
| LC-PBLEDXX | 24-60 | 595*595 | 80-150 |
| LC-PBLEDXX | 50-60 | 595*1195 | 80-130 |
