LED Panel Light(Round/Square)

LED Slim Panel Light

Ultra slim body shape with die-cast aluminum profile and high-efficiency LED chips

Features:

1, die-cast aluminum frame with nano / PMMA acrylic light guide plate and opal Polystyrene diffuser.

2, high-efficiency LED SMD chips, LM80.

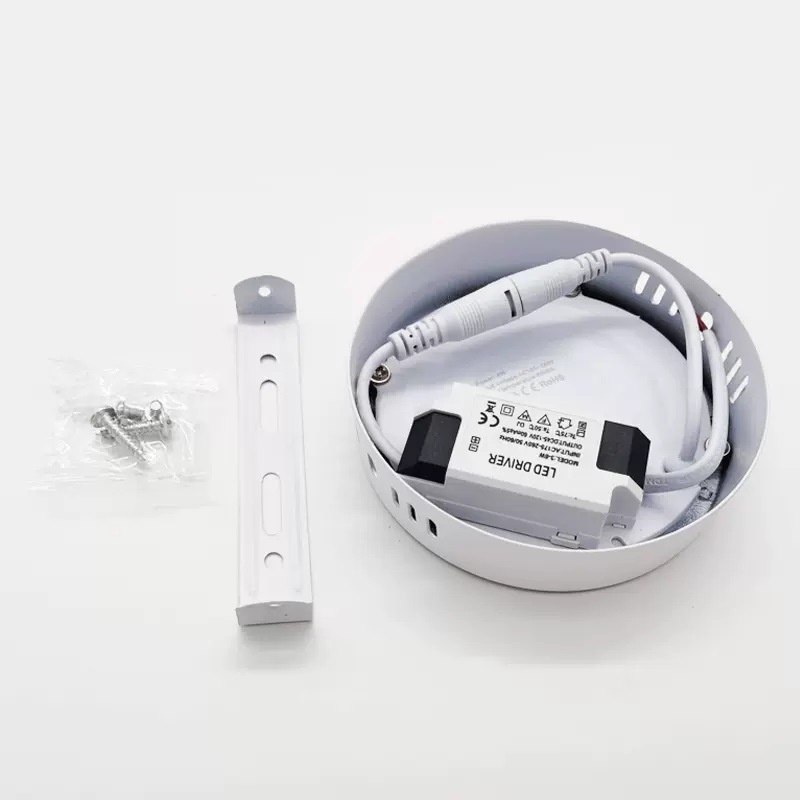

3，isolated led driver, non-dimming and flicker free.

4, 0-10V/DALI dimmable for option.

5, customized efficiency available.

6, installation: recessed/surface mounted.

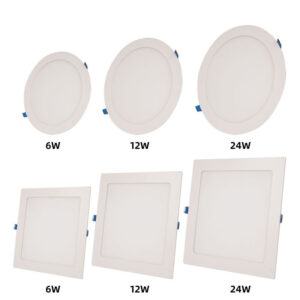

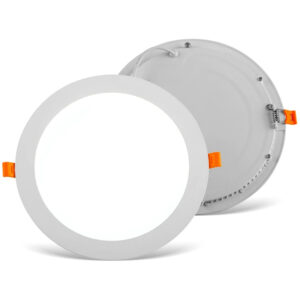

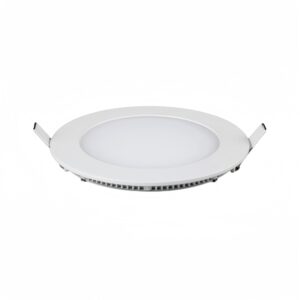

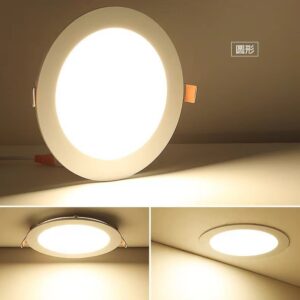

LED Slim Round Panel (Round type/Recessed)	Model	Dimen.(mm)	Cut-out(mm)	Efficiency(lm/w)	RA	Input	IP Grade	Warranty
	LC-PR-A3W	D85mm	D72mm	≥35lm/w	≥70	85-265Vac 50/60Hz	IP20	2/3 Years
	LC-PR-A6W	D120mm	D110mm	≥60lm/w	≥70	85-265Vac 50/60Hz	IP20	2/3 Years
	LC-PR-A9W	D145mm	D130mm	≥65lm/w	≥70	85-265Vac 50/60Hz	IP20	2/3 Years
	LC-PR-A12W	D170mm	D155mm	≥70lm/w	≥70	85-265Vac 50/60Hz	IP20	2/3 Years
	LC-PR-A15W	D190mm	D175mm	≥80lm/w	≥70	85-265Vac 50/60Hz	IP20	2/3 Years
	LC-PR-A18W	D225mm	D205mm	≥80lm/w	≥70	85-265Vac 50/60Hz	IP20	2/3 Years
	LC-PR-A24W	D300mm	D285mm	≥80lm/w	≥70	85-265Vac 50/60Hz	IP20	2/3 Years
	LC-PR-A30W	D300mm	D285mm	≥80lm/w	≥70	85-265Vac 50/60Hz	IP20	2/3 Years

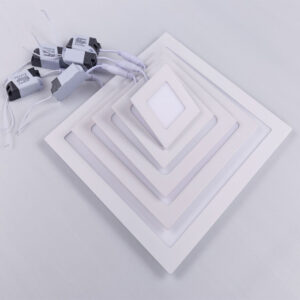

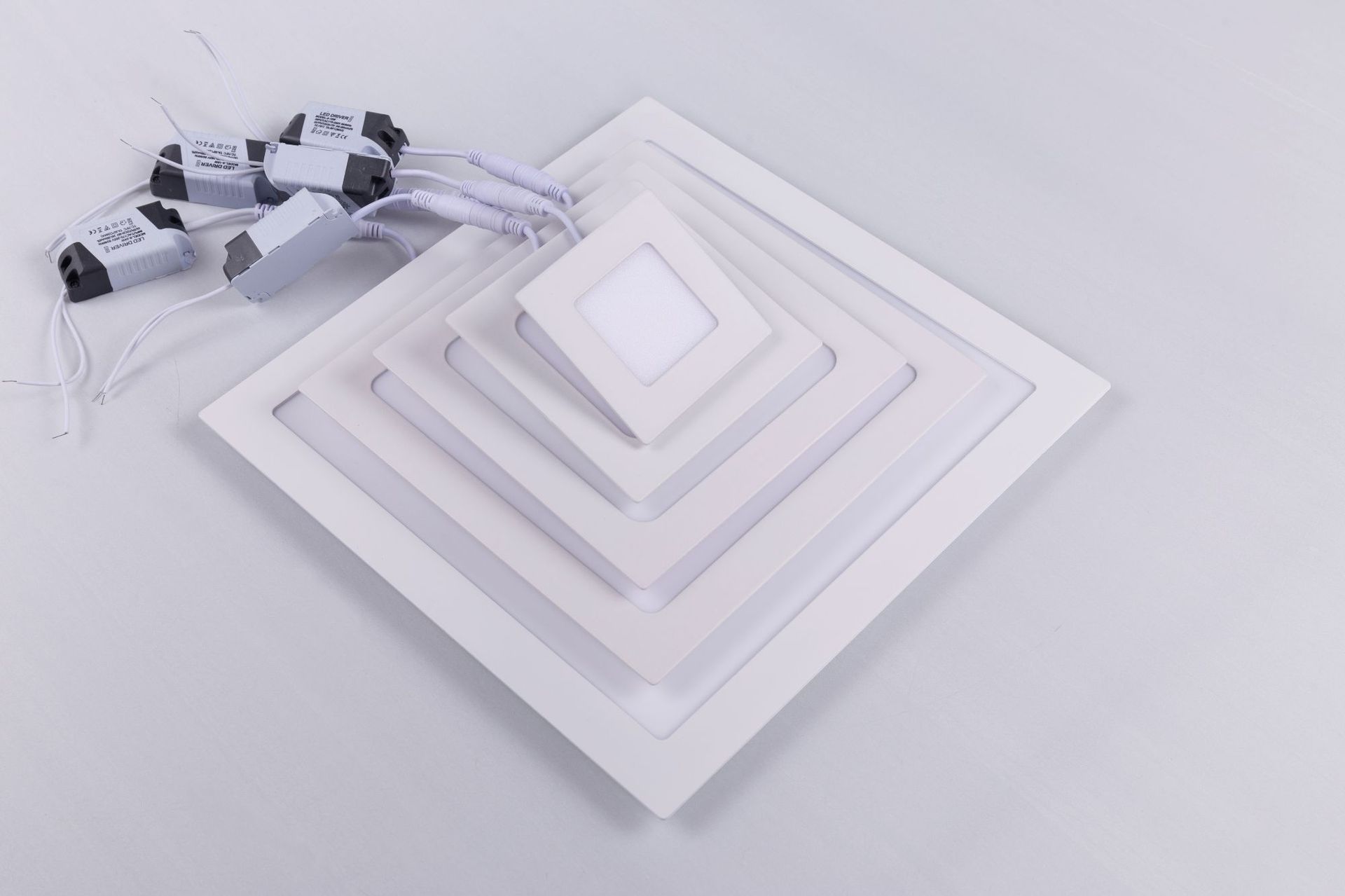

LED Slim Square Panel (Square type/Recessed)	Model	Dimen.(mm)	Cut-out(mm)	Efficiency(lm/w)	RA	Input	IP Grade	Warranty
	LC-PS-A3W	D85mm	D72mm	≥35lm/w	≥70	85-265Vac 50/60Hz	IP20	2/3 Years
	LC-PS-A6W	D120mm	D110mm	≥60lm/w	≥70	85-265Vac 50/60Hz	IP20	2/3 Years
	LC-PS-A9W	D145mm	D130mm	≥65lm/w	≥70	85-265Vac 50/60Hz	IP20	2/3 Years
	LC-PS-A12W	D170mm	D155mm	≥70lm/w	≥70	85-265Vac 50/60Hz	IP20	2/3 Years
	LC-PS-A15W	D190mm	D175mm	≥80lm/w	≥70	85-265Vac 50/60Hz	IP20	2/3 Years
	LC-PS-A18W	D225mm	D205mm	≥80lm/w	≥70	85-265Vac 50/60Hz	IP20	2/3 Years
	LC-PS-A24W	D300mm	D285mm	≥80lm/w	≥70	85-265Vac 50/60Hz	IP20	2/3 Years
	LC-PS-A30W	D300mm	D285mm	≥80lm/w	≥70	85-265Vac 50/60Hz	IP20	2/3 Years

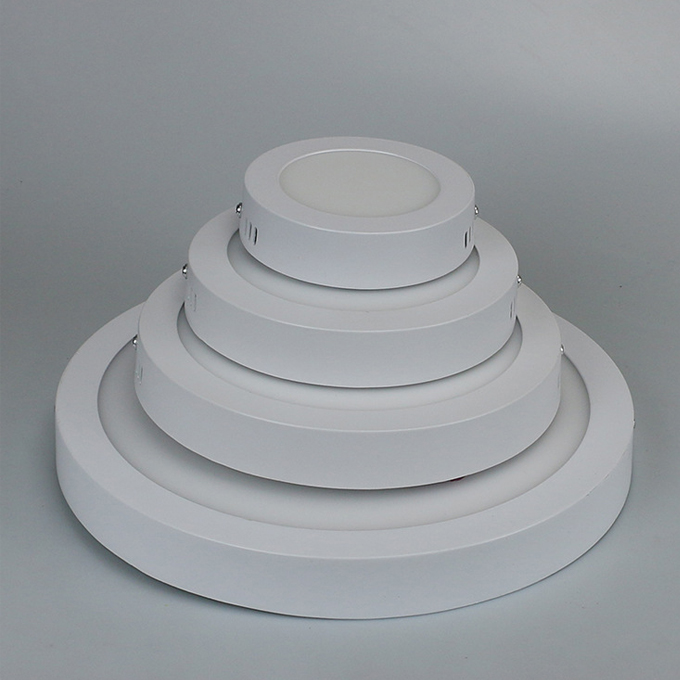

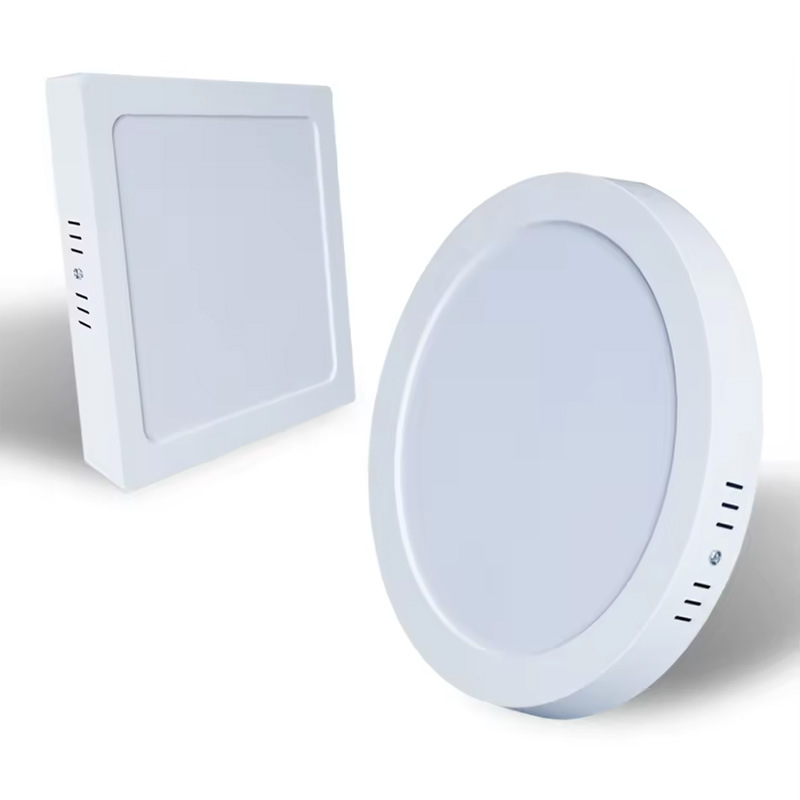

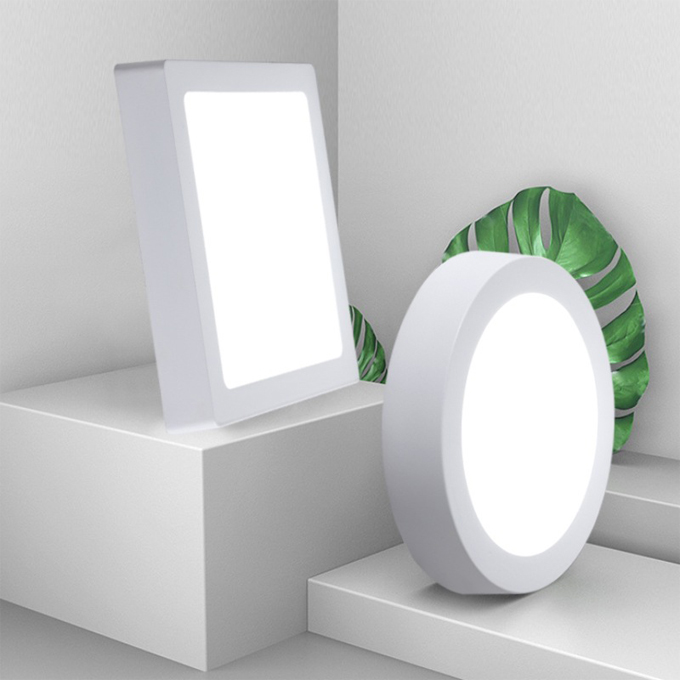

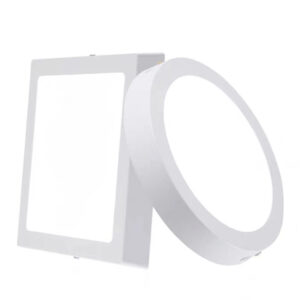

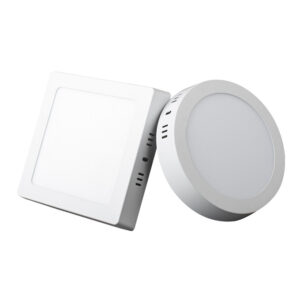

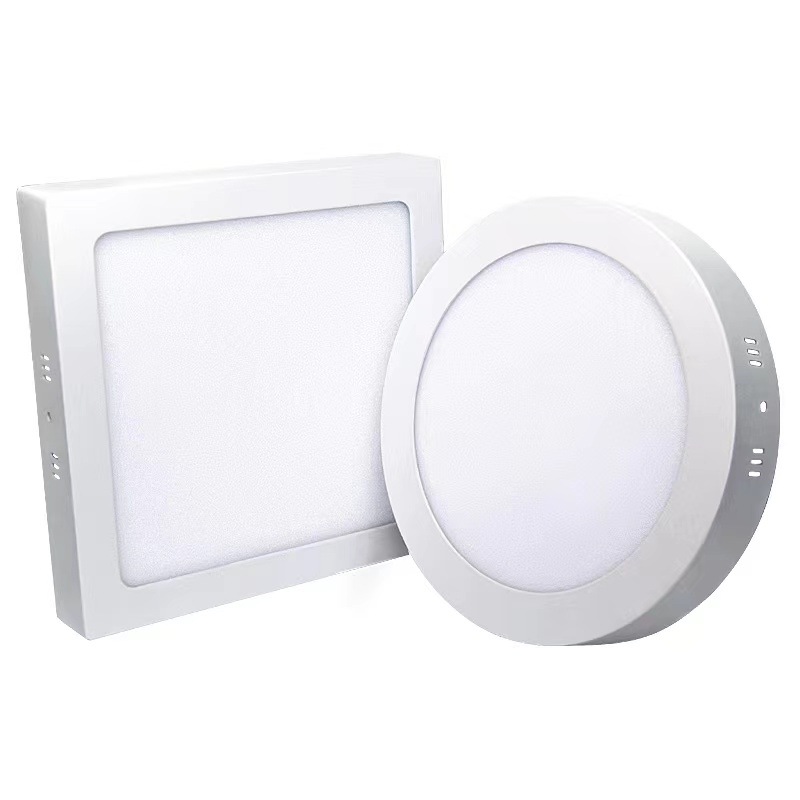

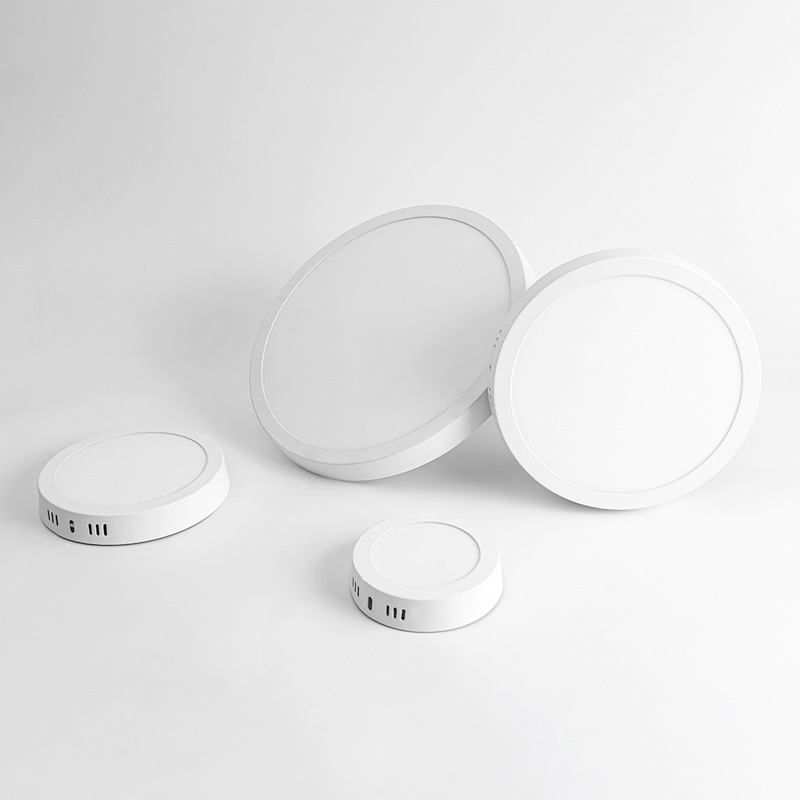

LED Round Panel (Round type/Surface Mount)	Model	Dimen.(mm)	Cut-out(mm)	Efficiency(lm/w)	RA	Input	IP Grade	Warranty
	LC-PR-B6W	D120mm	==	≥60lm/w	≥70	85-265Vac 50/60Hz	IP20	2/3 Years
	LC-PR-B12W	D170mm	==	≥70lm/w	≥70	85-265Vac 50/60Hz	IP20	2/3 Years
	LC-PR-B18W	D225mm	==	≥80lm/w	≥70	85-265Vac 50/60Hz	IP20	2/3 Years
	LC-PR-B24W	D300mm	==	≥80lm/w	≥70	85-265Vac 50/60Hz	IP20	2/3 Years
	LC-PR-B30W	D300mm	==	≥80lm/w	≥70	85-265Vac 50/60Hz	IP20	2/3 Years

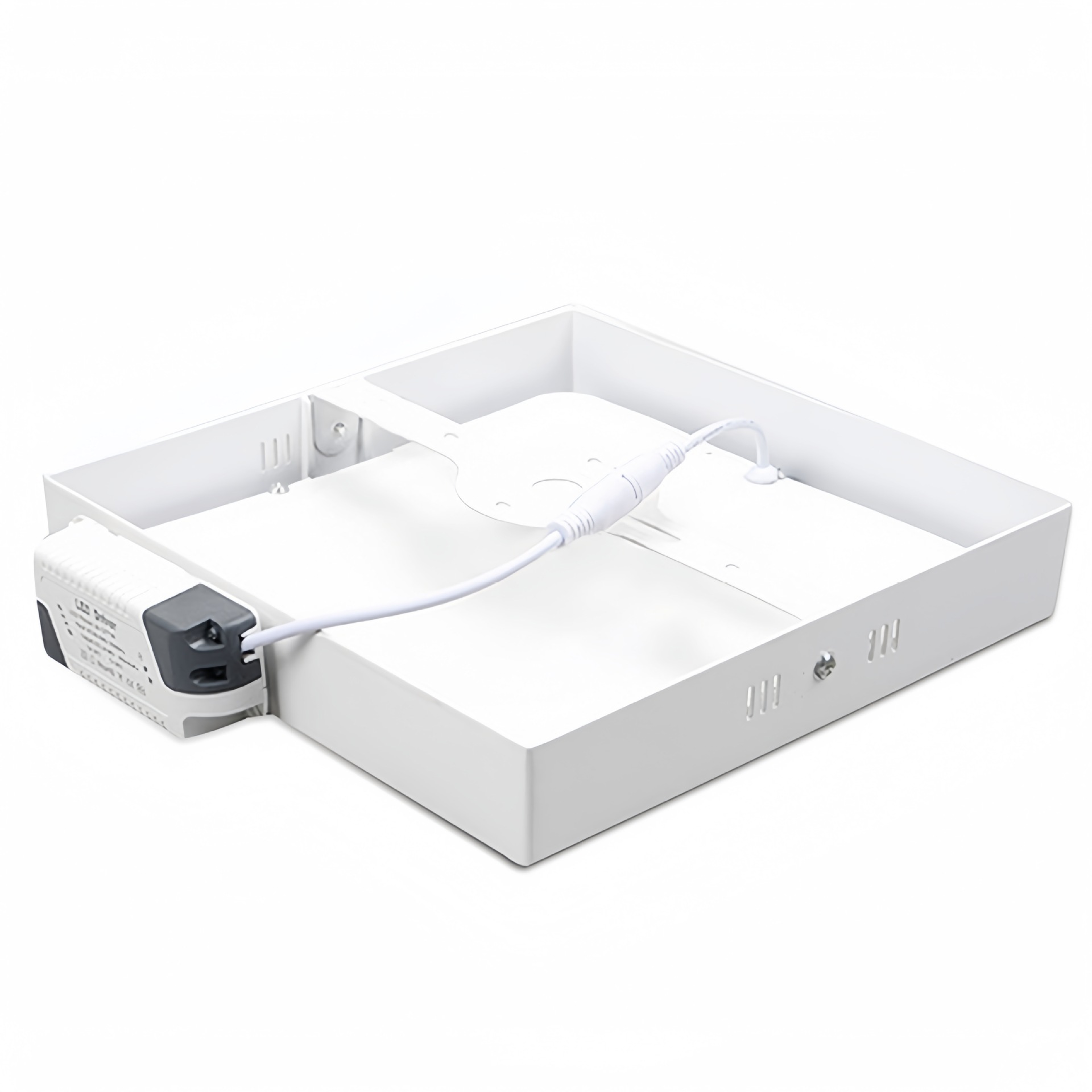

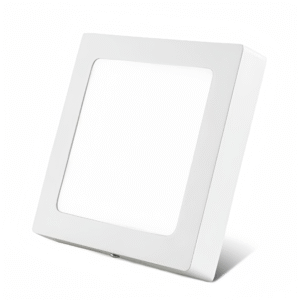

LED SquarePanel (Square type/Surface Mount)	Model	Dimen.(mm)	Cut-out(mm)	Efficiency(lm/w)	RA	Input	IP Grade	Warranty
	LC-PS-B6W	D120mm	==	≥60lm/w	≥70	85-265Vac 50/60Hz	IP20	2/3 Years
	LC-PS-B12W	D170mm	==	≥70lm/w	≥70	85-265Vac 50/60Hz	IP20	2/3 Years
	LC-PS-B18W	D225mm	==	≥80lm/w	≥70	85-265Vac 50/60Hz	IP20	2/3 Years
	LC-PS-B24W	D300mm	==	≥80lm/w	≥70	85-265Vac 50/60Hz	IP20	2/3 Years
	LC-PS-B30W	D300mm	==	≥80lm/w	≥70	85-265Vac 50/60Hz	IP20	2/3 Years
