Cleanroom Panel Light IP65 Waterproof

The lighting fixtures used in cleanrooms must meet illumination requirements while also being dustproof, waterproof, and compliant with cleanliness standards.

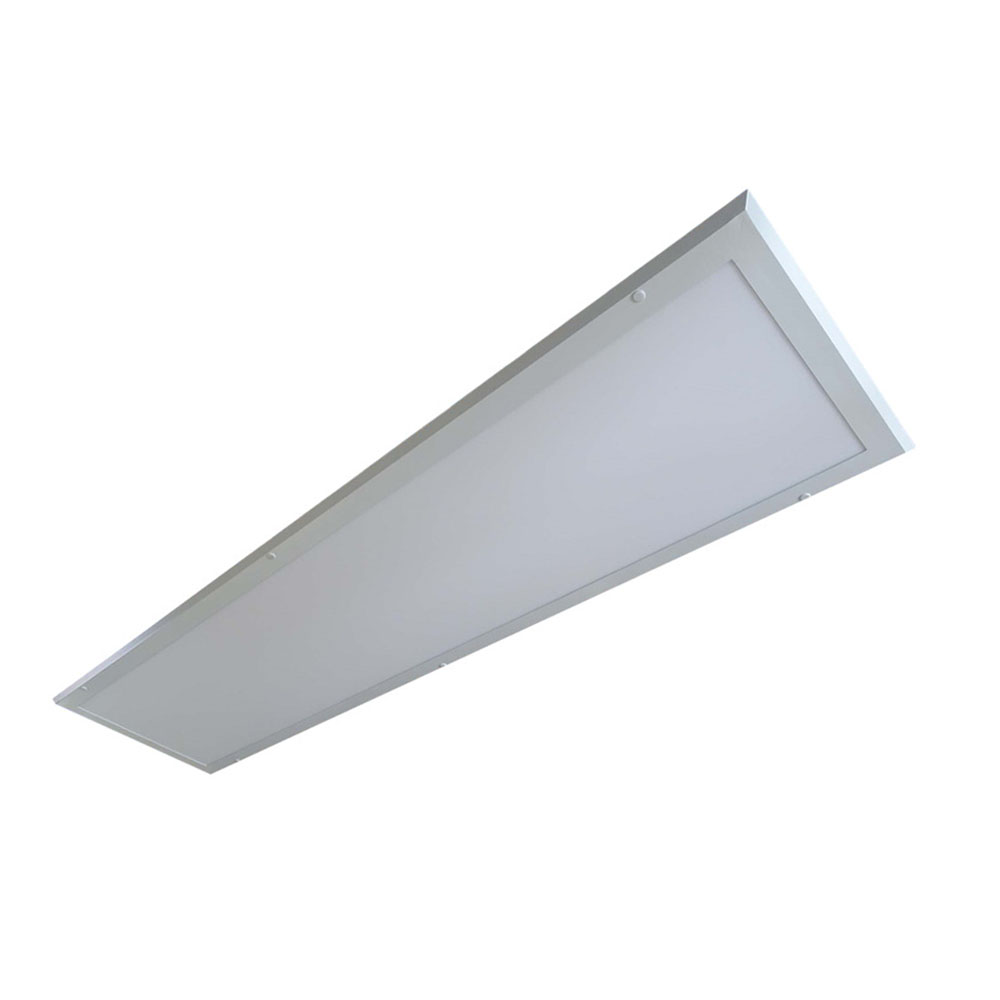

This ultra-thin cleanroom panel light has a thickness of only 10mm, maximizing the available space in the cleanroom. Its simple beveled design does not interfere with airflow in the cleanroom, is dustproof and waterproof, and is easy to clean. The frame is made of aluminum alloy, which is corrosion-resistant, rust-proof, chemically inert to common cleaning agents, and does not cause secondary contamination in the cleanroom.

The optics of the fixture can be customized according to project specifications to meet the illuminance requirements of different environments.
It is suitable for clean environments such as pharmaceutical factories, laboratories, electronics factories, and cosmetics factories.

Features:

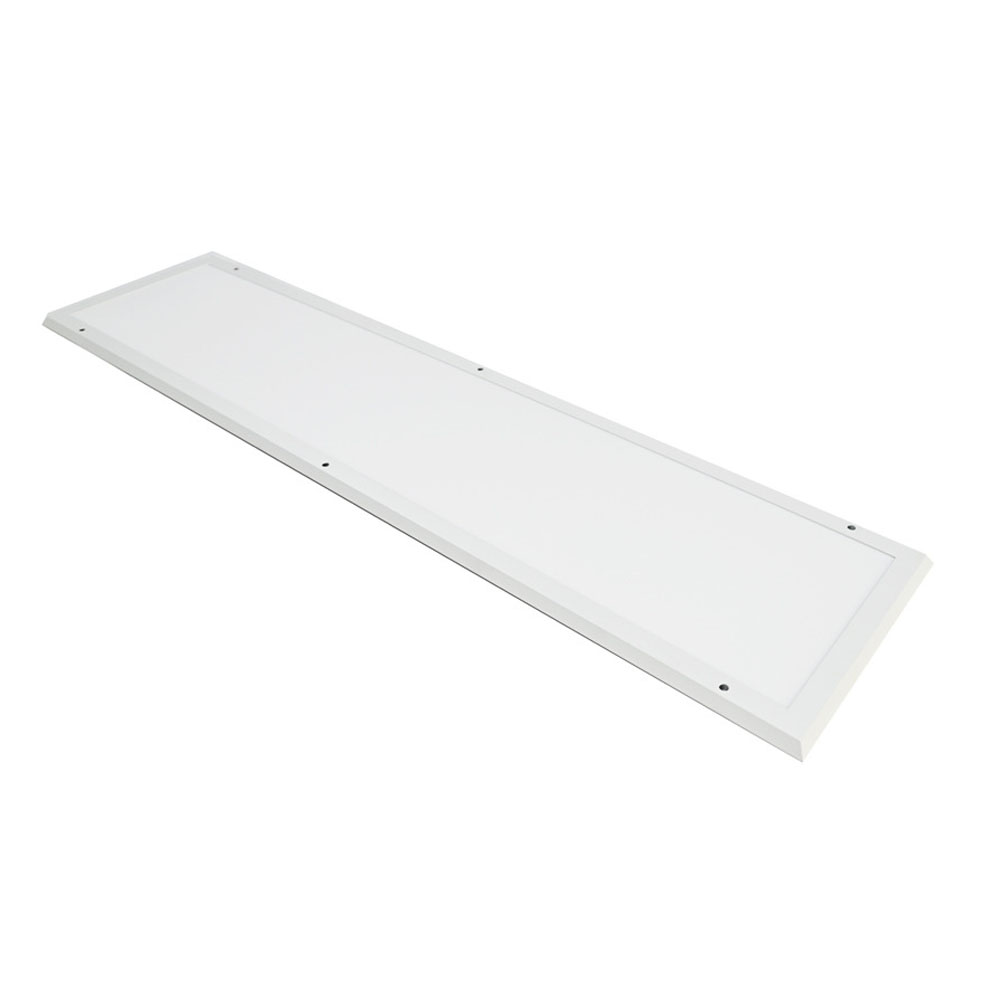

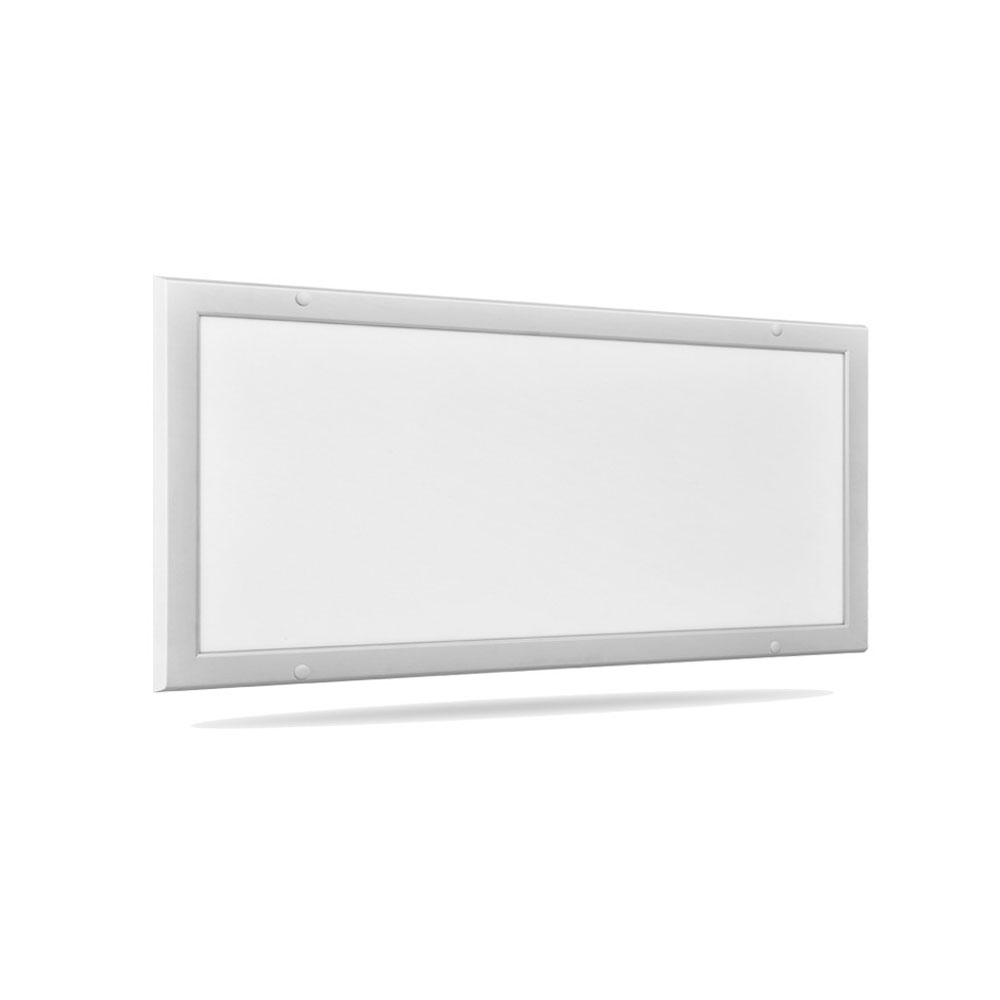

• Bevel-rim appearance design, ultra slim body housing
• Stable quality and high luminous efficiency, exquisite, durable and good heat dissipation
• Aluminum alloy frame, PMMA LGP with opal white sleek PS/PC diffuser.
• 5 years warranty, 50000hrs lifespan
• Optional: On/Off, 0-10V/Dali dim.
• Housing: Aviation 6063 aluminum
• Finishing Color: Opal white / grey (Depending on quantity)
• Diffuser: Polycarbonate / Polystyrene

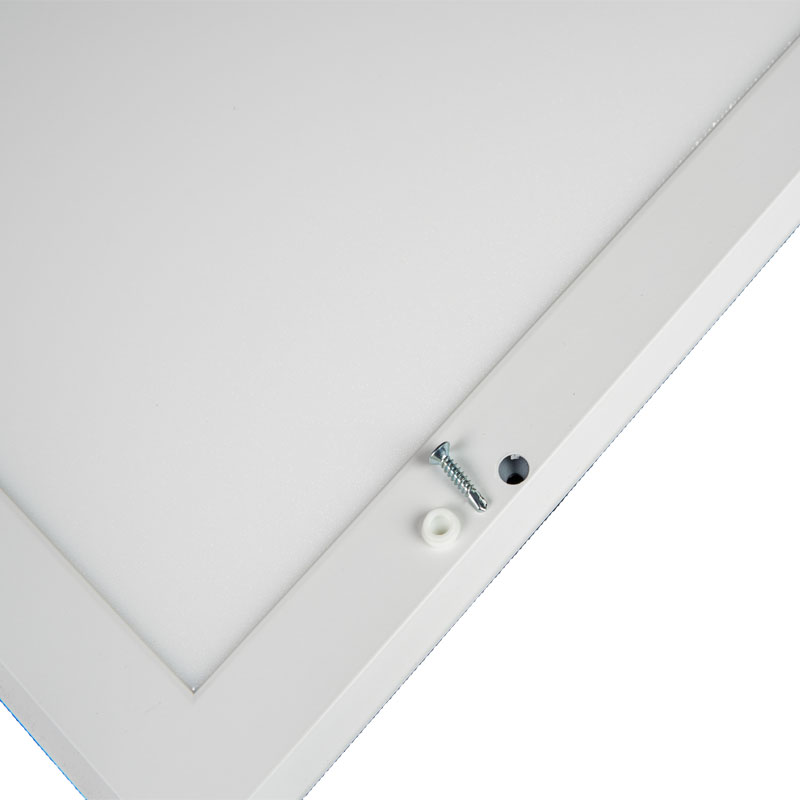

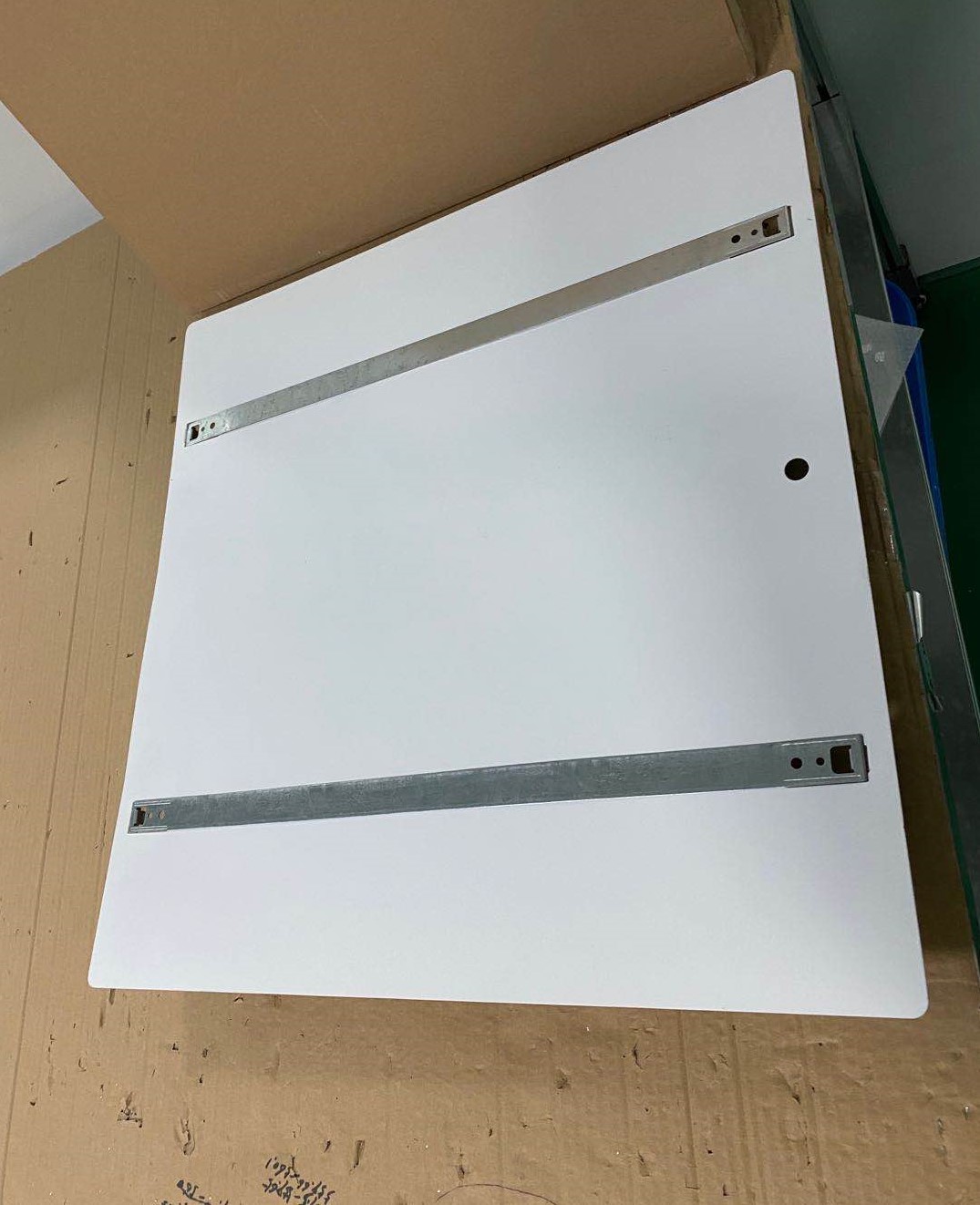

• Installation Way: Surface Mount by Screws / Brackets
• Warranty: 5 Years,  Input： AC220-240V、100-277V 50/60Hz
• Ingress Protection: IP20 / IP54 /IP65
• Flicker: Free
• RA ≥ 80
• Option: Surface mounting by brackets/Screws

LED Type:

CCT: 3000K/4000K/6500K

RA ≥ 80 SDCM ≤ 6/ 5/ 3

PF > 0.95@230Vac full load

Flicker Free

Optional: On/Off, 0-10V/Dali dim.

Working lifespan:50,000hours

Note：CR-PA series indicates: screw fixed, CR-PB series indictaes: bracket fixed.
