• Remarkable efficient performance in 80lm/w at least, reducing electricity costs and energy efficiency.
• 6063 / 6061 viation aluminum alloy frame, no rust and anti corrosion.

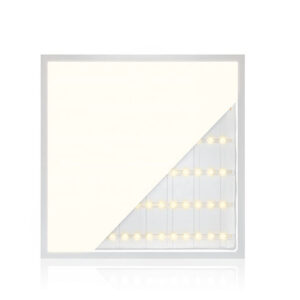

• High-transmission SMD lens, offering a stable and homogeneous light distribution in 112° beam angle.

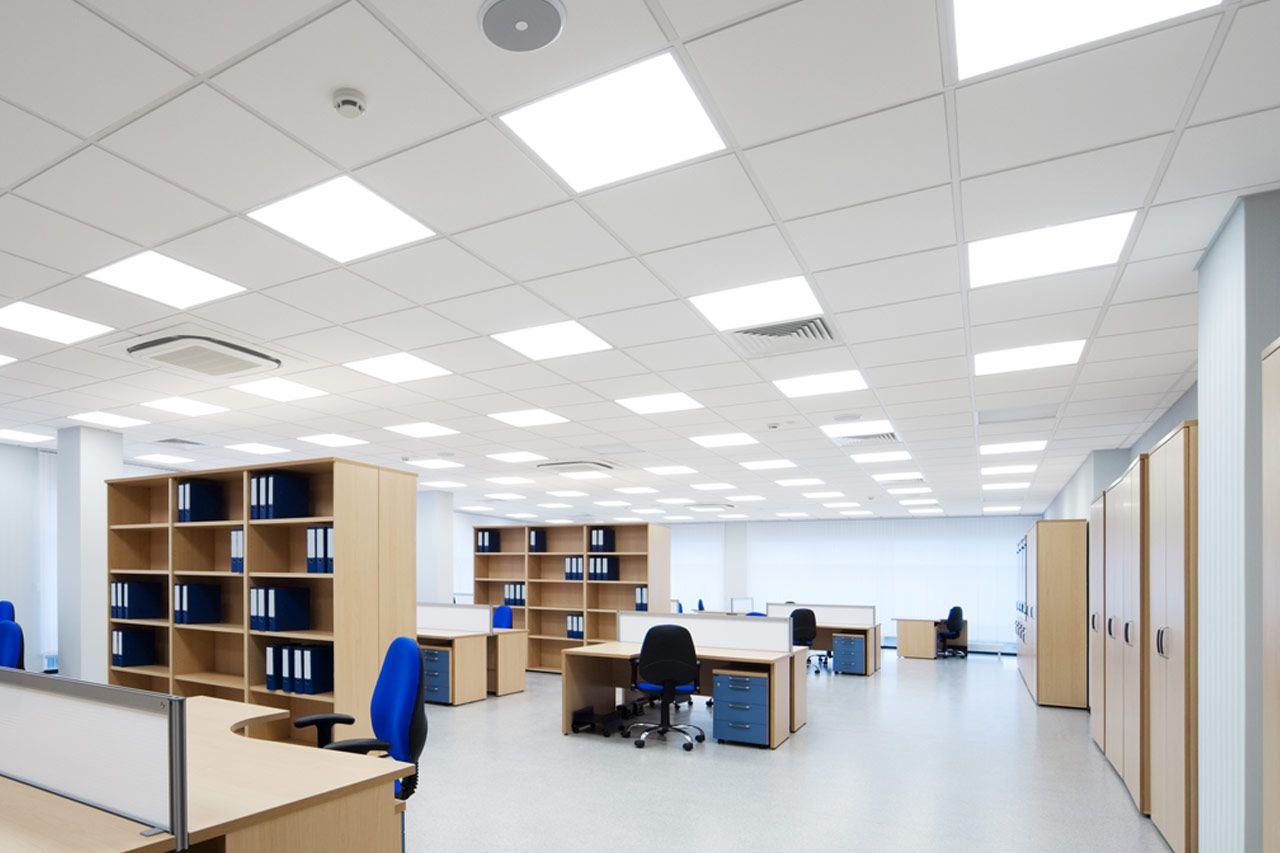

• Applied to Office, Conference, Classroom, Library etc.

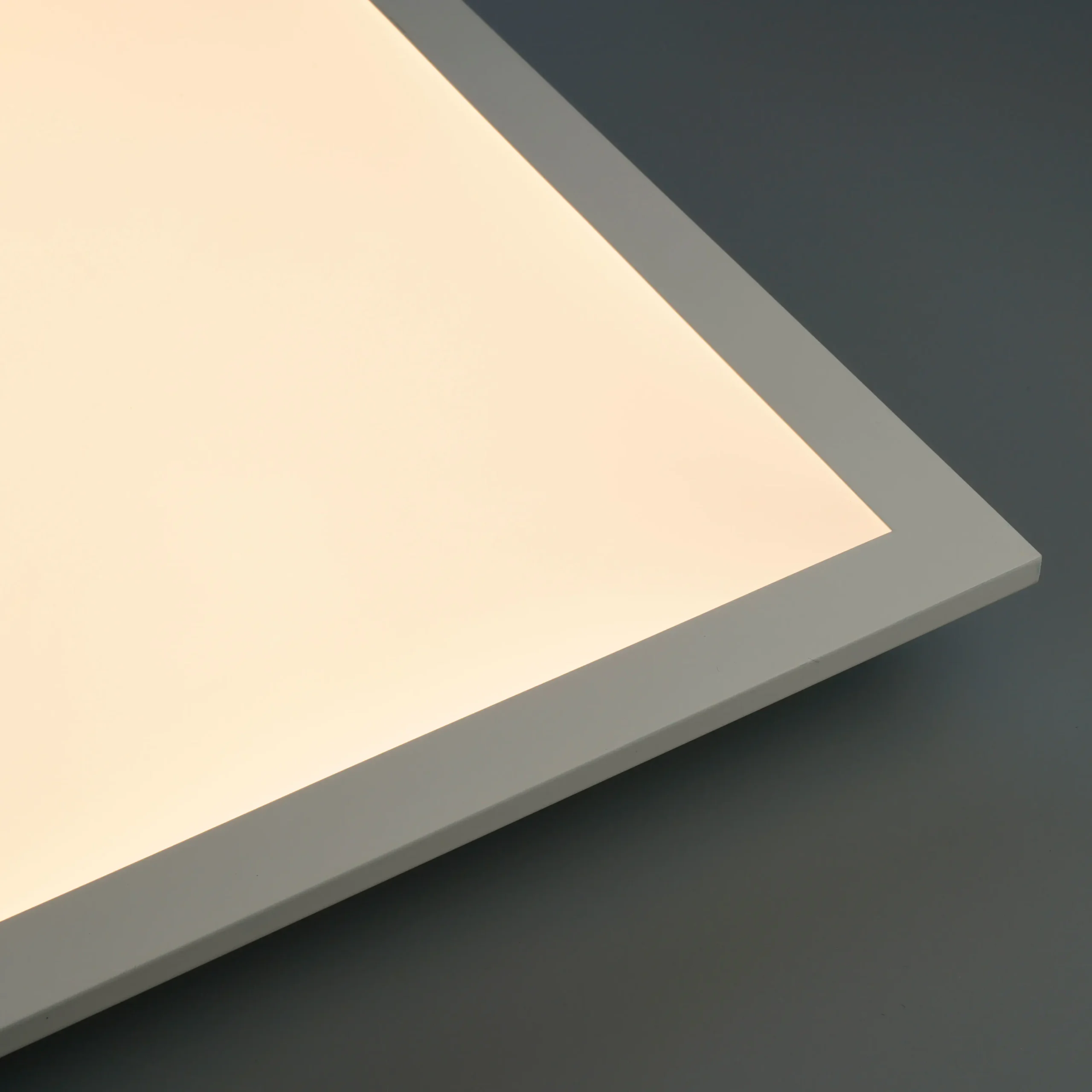

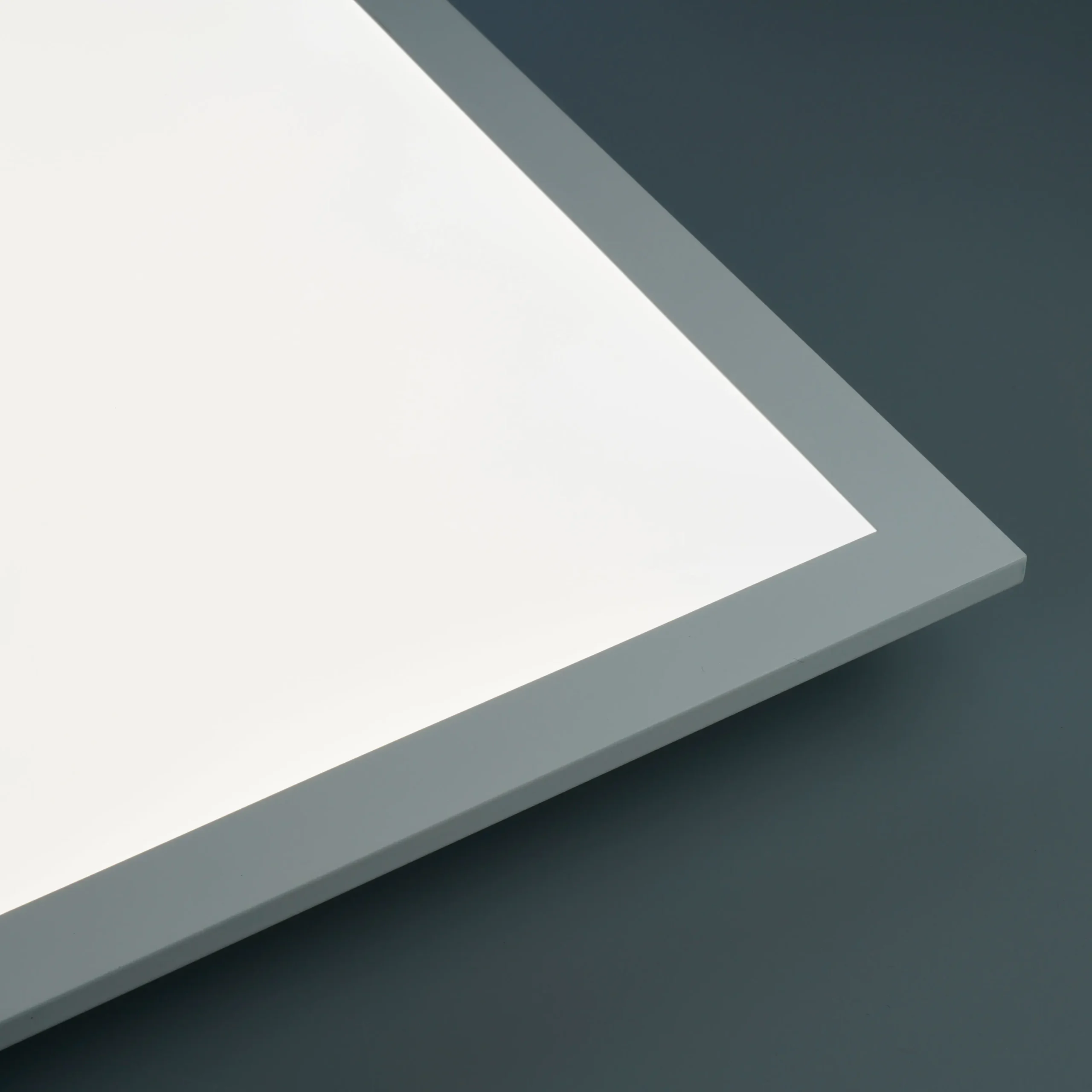

• Frame：6063 / 6061 aviation aluminum alloy
• Finishing Color: White, Black, Silver and other colors on request(Depending on quantity)
• Diffuser: Anti-yellow Polystyrene (PS) or Polycarbonate (PC)

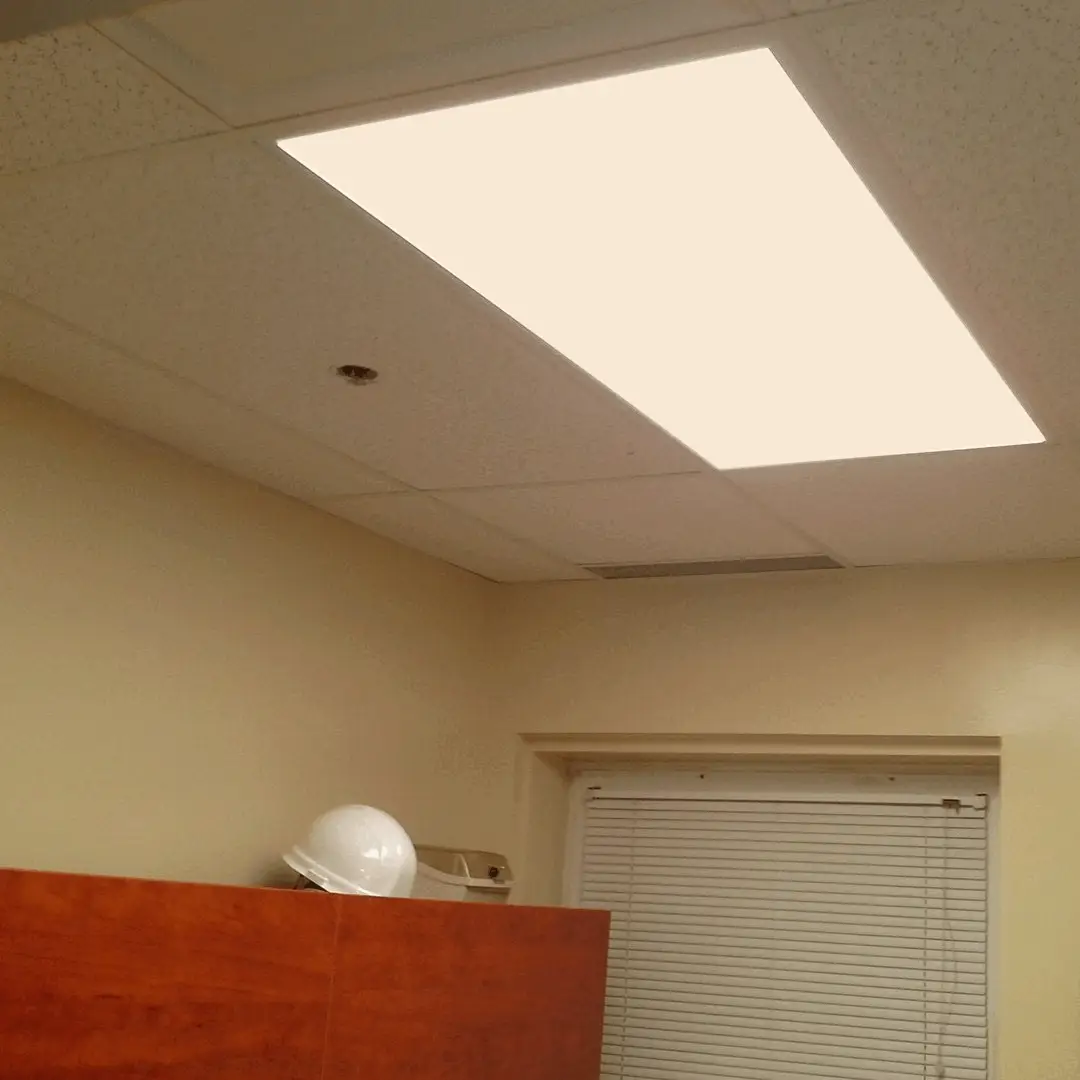

• Installation Way: Recessed, Surface Mounted, Suspended
• Warranty: 5 Years
• Ingress Protection: IP20
• Flicker: Free
• Option: Mounting Frame, Suspension Wire, Clips, Rope
LED Type:

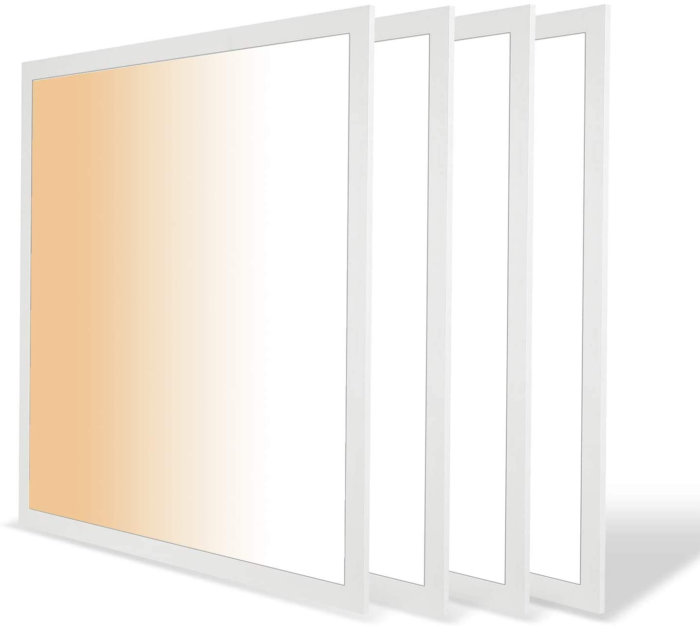

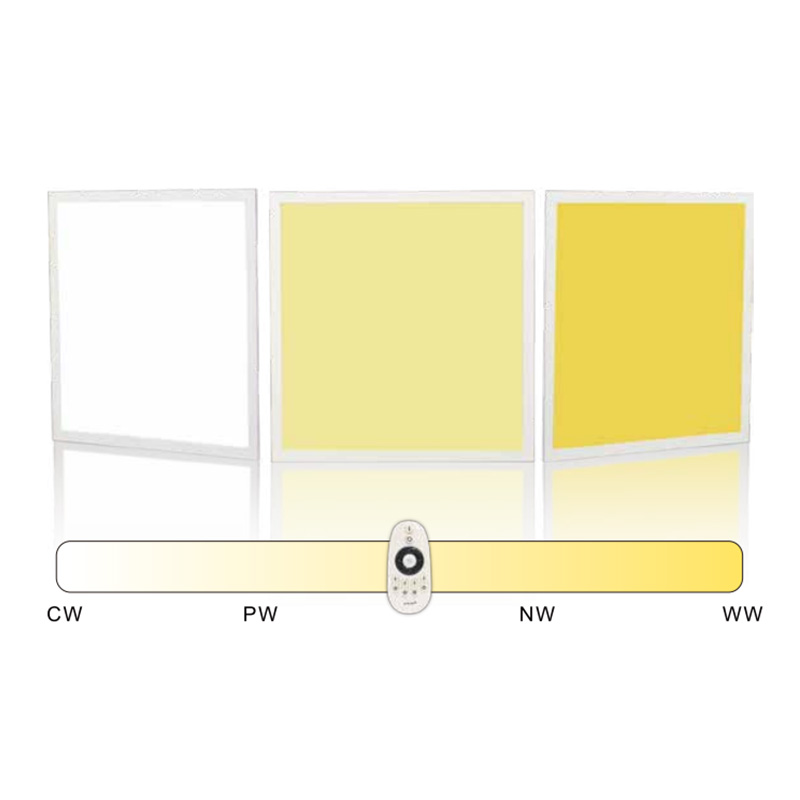

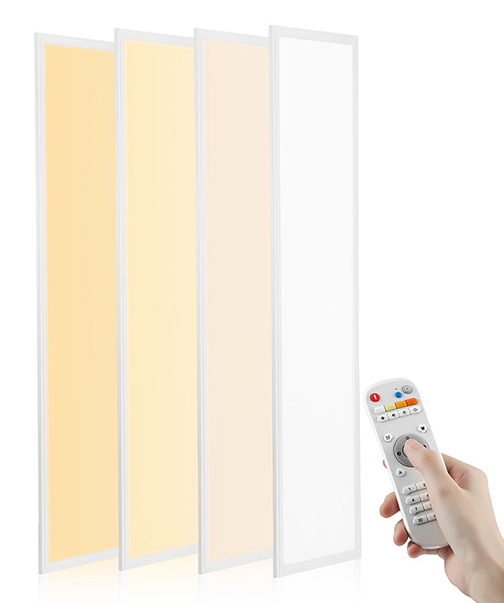

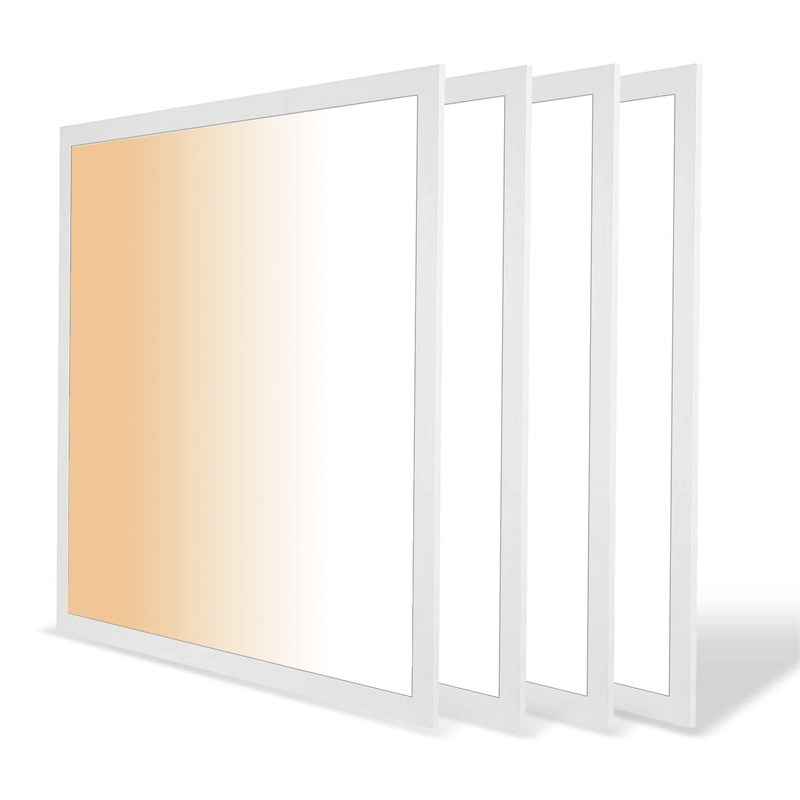

3CCT/5CCT dimmable and brightness dimmable
RA>80， SDCM6/5/3
Beam Angle: 112°
Driver：
AC220-240V / 100-277V, 50/60Hz
PF>0.90
Flicker Free
ON/OFF/ 0-10V / DALI dim.
Working lifespan:50,000hours

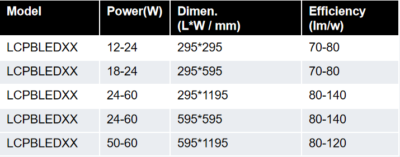

| Model | Watt.(W) | Dimen.(mm) | Efficiency(lm/w) |
| LC-PBLEDXX | 12-24 | 295*295 | 70-80 |
| LC-PBLEDXX | 18-24 | 295*595 | 70-80 |
| LC-PBLEDXX | 24-60 | 295*1195 | 80-140 |
| LC-PBLEDXX | 24-60 | 595*595 | 80-140 |
| LC-PBLEDXX | 50-60 | 595*1195 | 80-120 |
